22A No light normally closed normally open reset Featured Image
  • 22A No light normally closed normally open reset

22A No light normally closed normally open reset

Short Description:

-Product Model: Q22A-6.
-Type: Without LED,Momentary.
-Material:304 stainless steel housing，PA66.
-Protection level: IP67, IK10, IP40.
-Electrical parameters: 5A /250VAC.
-Contact resistance:≤50Ω.
-LED voltage: 3V-220V.
-Service temperature range:-20℃—55℃.
-Lamp bead life:40,000 hours.
-Mechanical life:30 times/min，500,000 times.
-Insulation resistance:≥1000MΩ.


  • :

    • Product Detail

    FAQ

    Product Tags

    Product Characteristics Q22A-6

    1. Flame retardant material
    2. Security guarantee
    3. Stainless steel case anti-corrosion and dust-proof
    4. Contains PC button, silicone waterproof ring
    5. High performance, strong and reliable

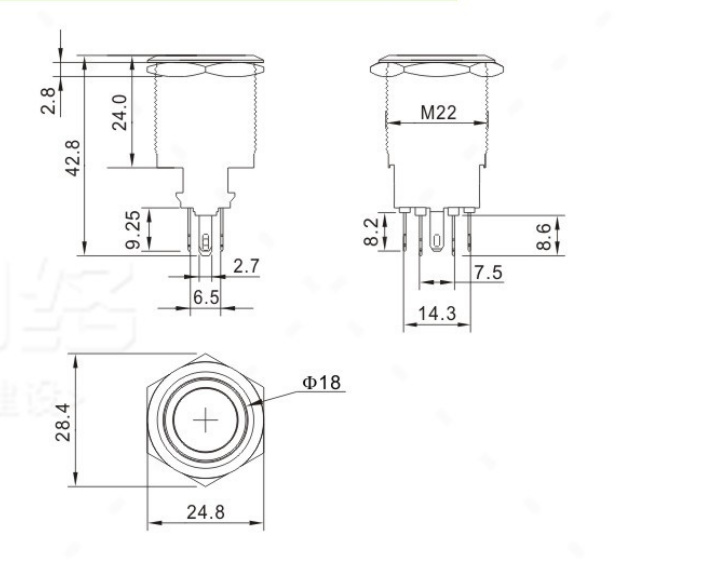

    Product Drawing

    sd

    Application Areas Q22A-6

    • The products can be used in electronic equipment, transportation, security equipment, household goods, medical equipment, bathroom, access control and so on.

    Package picture

    sad
    asd
